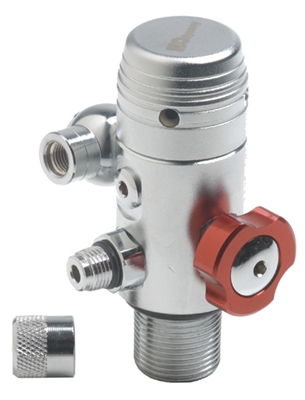

Integrated Argon-Air Regulator Valve
TDL Dry Suit Inflation System is a self-contained integrated valve and
first stage assembly that fits any 3/4" scuba thread cylinder. Measuring
only 2 3/8 inches tall this is the most compact valve/regulator system
in existence. The regulator is a balanced piston first stage with an
intermediate pressure set at the factory at 100 psi. IP can be adjusted
by a qualified regulator technician with pre-set shims for 80, 100, 120,
or 140 psi intermediate pressure depending on specific needs.
Each regulator has:
-
2 LP hose ports
-
1 HP hose port for a gauge
-
Safety assembly (burst disk)
-
One way fill valve port for easy filling
-
Protective Cap
-
Swivel Ball Adapter for easy hose positioning
-
On-Off Valve
REQUIRES FILL ADAPTER (not included)
REQUIRES LP INFLATOR HOSE (not included)
Suggest Over Pressure Relief Valve (not included)
